Building A Cluster
Lets Describe a Cluster Using Infra Proto Data Model
The main steps in designing a network infrastructure using infra.proto is as follows:
-
Creating Inventory: Here we define the devices type and the external links type that will be used to describe the infrastructure.
-
Defining Devices: Here we define a single device for each device type that is present in the infrastructure, its inside components and links inside
- Define Component
- Define Links to connect the components with-in the device
- Create Connection between Components using Links
-
Defining External Links: Here we define the external link type that connects two devices
-
Building the infrastructure as graph
- Instantiating devices: Use the device definition in the inventory as a template to create multiple devices for the infrastructure.
- Defining connections: Use the external link definition to create connections between device instances.

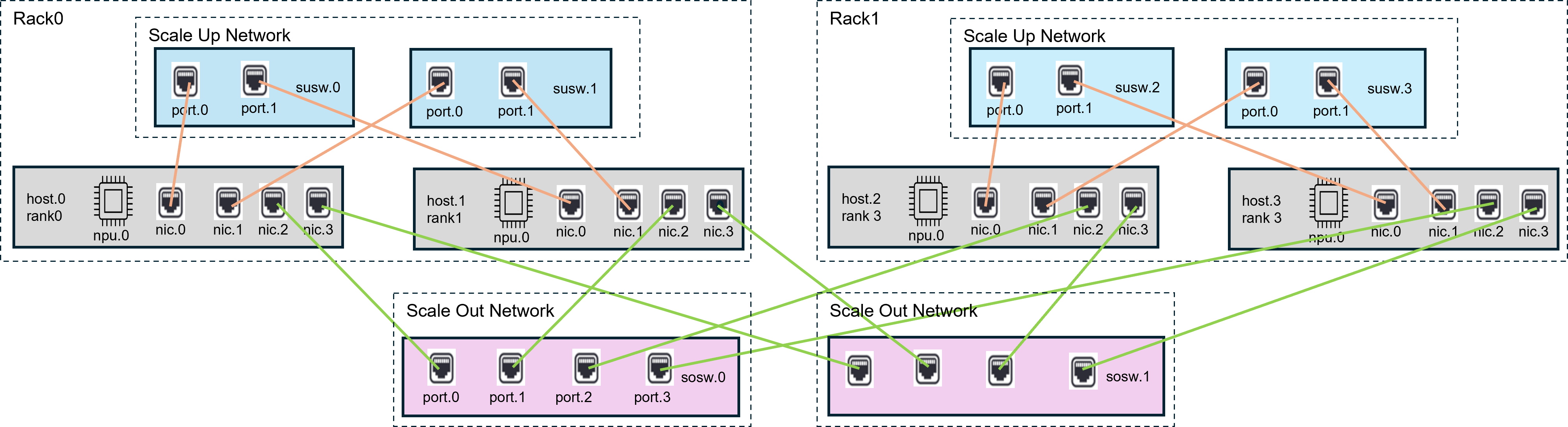

Follow these steps to design a Scale Up and Out Infrastructure.
Creating Device Inventory
Device inventory outlines the necessary devices for infrastructure, including components and links. It acts as a blueprint to create and connect instances, aiming to define once and reuse multiple times for optimal space complexity. For example, in a network with 100 switches (50 each of 2 types) connected by 100G ethernet links, the inventory will only specify the 2 switch types and the 100G ethernet link type.
Note that the entire device does not need to be described in full detail. The level of device detail should be dictated by the needs of the application.
To define a Device:
- use the
Componentmessage to define individual components (vertexes) that are present in a device - use the
Component - countfield to scale up the number of components in the device - use the
Linkmessage to define different link types within the device - use the
Devicemessage to containComponentandLinkmessages - use the
Device - connectionsfield to connect components (vertexes) to each other with an associated link to form an edge - the format of a
connectionsstring is described in the infra.proto file
Now we will be designing a 4 port generic switch as a part of device inventory.

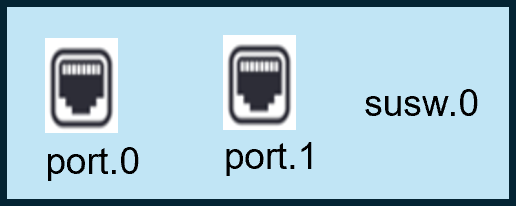

Defining 2 port scale up switch
Lets define a simple 2 port scale up switch.
This switch is made of two front panel ports.
User can define this switch with one major "port" components inside it. These components can be viewed as nodes in a graph.
YAML Definition
JSON Definition
We have specified a scale up switch with 2 port components. Now we can define a scale out switch with 4 port components.

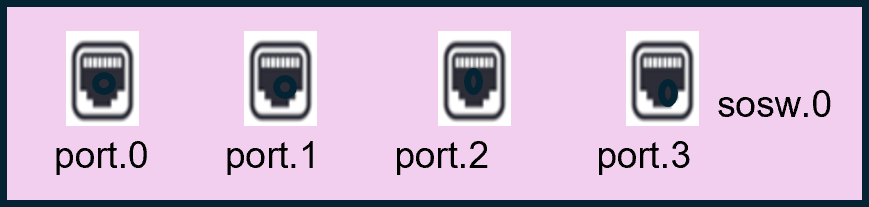

Defining 4 port scale out switch
Lets define a simple 2 port scale up switch.
This switch is made of four front panel ports.
User can define this switch with one major "port" components inside it. These components are analogous to a node in a graph.
YAML Definition
JSON Definition

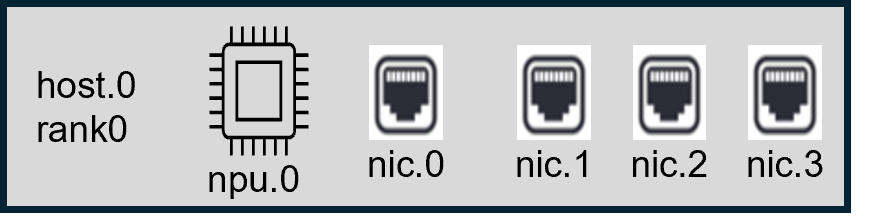

Design host with 4 nics and single npu
Let's design a host with 4 nics and a single npu
Our Host has two interconnected components: - 4 nics - 1 npu
These components are connected to each other via a pcie connection. Therefore to connect two different components, we can use the following notation:
<source>.<link>.<destination>
The <source> contains the source component and its index. The <destination> specifies the destination component and its index. The link joins the source and the destination. Therefore, the connection would look something like this:
These components can be defined as node in a graph which are connected through an edge (pcie) link in this case. We need to define the links as well as connections with which the whole device definition is defined below:
YAML Definition
JSON Definition
{
"inventory": {
"devices": {
"HOST": {
"name": "HOST",
"components": {
"npu": {
"name": "npu",
"count": 1,
"npu": { }
},
"nic": {
"name": "nic",
"count": 4,
"nic": {
"ethernet": { }
}
}
},
"links": {
"pcie": {
"name": "pcie"
}
},
"connections": [
"npu.0.pcie.nic.0",
"npu.0.pcie.nic.1",
"npu.0.pcie.nic.2",
"npu.0.pcie.nic.3"
]
}
}
}
}
Defining Links
The objective is to define an infrastructure build using the switch and hosts defined earlier. The goal is to build an infrastructure where one switch is directly connected to four hosts via 100G Ethernet.
We have defined a switch and a host in the inventory, but not the 100G links. Let's define a 100G ethernet link as follows:
JSON Definition
In this example, we have defined a link name: eth with a bandwidth of 100 gbps. Subsequently, four such links will be utilized to connect four devices to four switch ports, as illustrated in the above image.
Creating Device Instances
We can scale the infrastructure by using the device instance message. To create a fully connected topology, we instantiate the defined devices by giving a new instance_name to the device followed by a count. Therefore to create instances for host, scale up and scale out switch, we define the instance as following:
YAML Definition
JSON Definition
The devices are defined under the inventory - devices section, serving as a blueprint or template. These devices need to be instantiated to create the entire infrastructure, similar to creating objects of a class. With the specified count, multiple copies of the devices are created starting from index 0.
Next, these device instances need to be connected over 100G ethernet links as illustrated in the picture above.
Connecting Device Instances
Connections between the devices are made by the components of the device and links defined. Therefore, to connect two devices together, we need to define the connection in the following format:
<src_device>.<dev_index><src_component><comp_index>.<link>.<dst_device>.<dev_index><dst_component><comp_index>
The <src_device>.<dev_index><src_component><comp_index> specifies the source device, its index, component, and the component's index. The same format applies to the destination. The link defines the connection between source and destination.
A "." separator separates infrastructure elements. To connect a host with the scale_up_switch, we define the connection as:
The host at index 0, via its nic component 0, is connected to port 0 of scale up switch or susw 0. The link between this source and destination has a bandwidth of eth. This describes the first link shown in the above picture.
Creating the links:
YAML Definition
connections:
- host.0.nic.0.eth.susw.0.port.0
- host.0.nic.1.eth.susw.1.port.0
- host.0.nic.2.eth.sosw.0.port.0
- host.0.nic.3.eth.sosw.1.port.0
- host.1.nic.0.eth.susw.0.port.1
- host.1.nic.1.eth.susw.1.port.1
- host.1.nic.2.eth.sosw.0.port.1
- host.1.nic.3.eth.sosw.1.port.1
- host.2.nic.0.eth.susw.2.port.0
- host.2.nic.1.eth.susw.3.port.0
- host.2.nic.2.eth.sosw.0.port.2
- host.2.nic.3.eth.sosw.1.port.2
- host.3.nic.0.eth.susw.2.port.1
- host.3.nic.1.eth.susw.3.port.1
- host.3.nic.2.eth.sosw.0.port.3
- host.3.nic.3.eth.sosw.1.port.3
JSON Definition
{
"connections": [
"host.0.nic.0.eth.susw.0.port.0",
"host.0.nic.1.eth.susw.1.port.0",
"host.0.nic.2.eth.sosw.0.port.0",
"host.0.nic.3.eth.sosw.1.port.0",
"host.1.nic.0.eth.susw.0.port.1",
"host.1.nic.1.eth.susw.1.port.1",
"host.1.nic.2.eth.sosw.0.port.1",
"host.1.nic.3.eth.sosw.1.port.1",
"host.2.nic.0.eth.susw.2.port.0",
"host.2.nic.1.eth.susw.3.port.0",
"host.2.nic.2.eth.sosw.0.port.2",
"host.2.nic.3.eth.sosw.1.port.2",
"host.3.nic.0.eth.susw.2.port.1",
"host.3.nic.1.eth.susw.3.port.1",
"host.3.nic.2.eth.sosw.0.port.3",
"host.3.nic.3.eth.sosw.1.port.3"
]
}
The Complete Example
After combining all the definitions, we can arrive at the final design:
YAML Definition
inventory:
devices:
HOST:
name: HOST
components:
nic:
name: nic
count: 4
nic:
ethernet: {}
npu:
name: npu
count: 1
npu: {}
links:
pcie:
name: pcie
connections:
- npu.0.pcie.nic.0
- npu.0.pcie.nic.1
- npu.0.pcie.nic.2
- npu.0.pcie.nic.3
SCALE_OUT_SWITCH:
name: SCALE_OUT_SWITCH
components:
port:
name: port
count: 4
nic:
ethernet: {}
links: {}
connections: []
SCALE_UP_SWITCH:
name: SCALE_UP_SWITCH
components:
port:
name: port
count: 2
nic:
ethernet: {}
links: {}
connections: []
links:
eth:
name: eth
bandwidth:
gbps: 100
description: Ethernet link
deviceInstances:
host:
name: host
device: HOST
count: 4
sosw:
name: sosw
device: SCALE_OUT_SWITCH
count: 2
susw:
name: susw
device: SCALE_UP_SWITCH
count: 4
connections:
- host.0.nic.0.eth.susw.0.port.0
- host.0.nic.1.eth.susw.1.port.0
- host.0.nic.2.eth.sosw.0.port.0
- host.0.nic.3.eth.sosw.1.port.0
- host.1.nic.0.eth.susw.0.port.1
- host.1.nic.1.eth.susw.1.port.1
- host.1.nic.2.eth.sosw.0.port.1
- host.1.nic.3.eth.sosw.1.port.1
- host.2.nic.0.eth.susw.2.port.0
- host.2.nic.1.eth.susw.3.port.0
- host.2.nic.2.eth.sosw.0.port.2
- host.2.nic.3.eth.sosw.1.port.2
- host.3.nic.0.eth.susw.2.port.1
- host.3.nic.1.eth.susw.3.port.1
- host.3.nic.2.eth.sosw.0.port.3
- host.3.nic.3.eth.sosw.1.port.3
JSON Definition
{
"inventory": {
"devices": {
"SCALE_OUT_SWITCH": {
"name": "SCALE_OUT_SWITCH",
"components": {
"port": {
"name": "port",
"count": 4,
"nic": {
"ethernet": { }
}
}
},
"links": {
},
"connections": [
]
},
"SCALE_UP_SWITCH": {
"name": "SCALE_UP_SWITCH",
"components": {
"port": {
"name": "port",
"count": 2,
"nic": {
"ethernet": { }
}
}
},
"links": {
},
"connections": [
]
},
"HOST": {
"name": "HOST",
"components": {
"npu": {
"name": "npu",
"count": 1,
"npu": { }
},
"nic": {
"name": "nic",
"count": 4,
"nic": {
"ethernet": { }
}
}
},
"links": {
"pcie": {
"name": "pcie"
}
},
"connections": [
"npu.0.pcie.nic.0",
"npu.1.pcie.nic.1",
"npu.2.pcie.nic.2",
"npu.3.pcie.nic.3"
]
}
},
"links": {
"eth": {
"name": "eth",
"description": "Ethernet link",
"bandwidth": {
"gbps": 100
}
}
}
},
"deviceInstances": {
"host": {
"name": "host",
"device": "HOST",
"count": 4
},
"susw": {
"name": "susw",
"device": "SCALE_UP_SWITCH",
"count": 4
},
"sosw": {
"name": "sosw",
"device": "SCALE_OUT_SWITCH",
"count": 2
}
},
"connections": [
"host.0.nic.0.eth.susw.0.port.0",
"host.0.nic.1.eth.susw.1.port.0",
"host.0.nic.2.eth.sosw.0.port.0",
"host.0.nic.3.eth.sosw.1.port.0",
"host.1.nic.0.eth.susw.0.port.1",
"host.1.nic.1.eth.susw.1.port.1",
"host.1.nic.2.eth.sosw.0.port.1",
"host.1.nic.3.eth.sosw.1.port.1",
"host.2.nic.0.eth.susw.2.port.0",
"host.2.nic.1.eth.susw.3.port.0",
"host.2.nic.2.eth.sosw.0.port.2",
"host.2.nic.3.eth.sosw.1.port.2",
"host.3.nic.0.eth.susw.2.port.1",
"host.3.nic.1.eth.susw.3.port.1",
"host.3.nic.2.eth.sosw.0.port.3",
"host.3.nic.3.eth.sosw.1.port.3"
]
}
