xPU Interconnect Emulation

The KAI Data Center Builder supports the emulation of generic hosts using a streamlined xPU Interconnect model.

Originally the term NPU (Neural Processing Unit) Interconnect was used, but it has been renamed to xPU Interconnect to reflect the established terminology in the industry.

What we emulate within a host

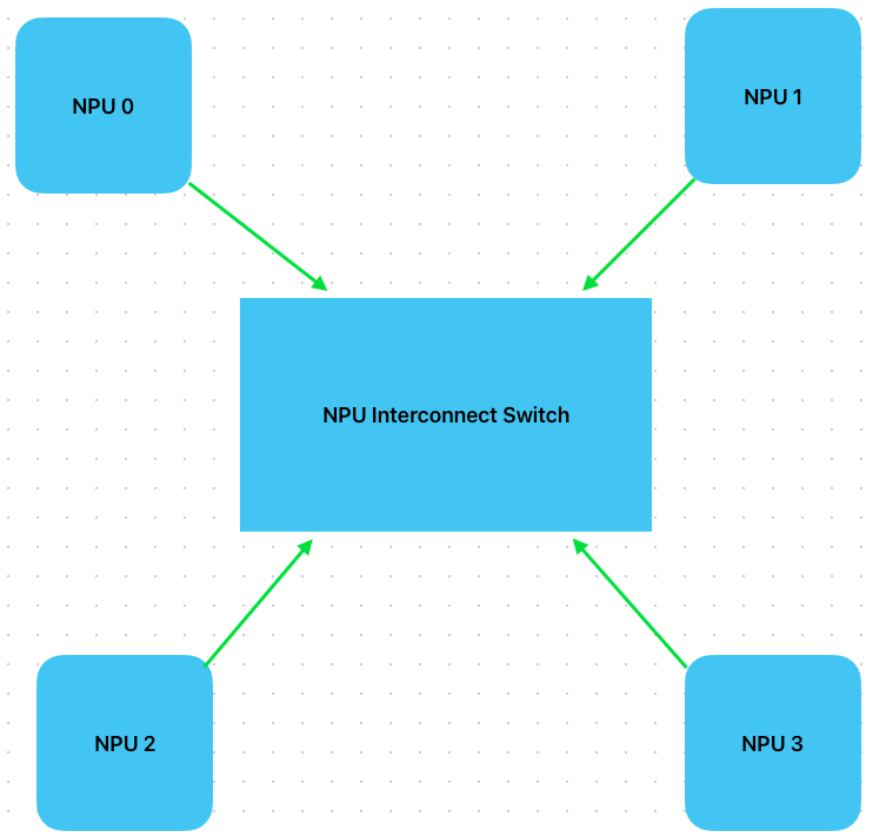

In this emulation, the user-specified bandwidth applies to each individual xPU-to-switch link.

All data transfers between ranks within a host, connected through the xPU Interconnect, are fully simulated.

Transfer Duration Calculation

The duration of each simulated xPU Interconnect transfer is determined by dividing the transfer size by the configured bandwidth. That is:

Transfer Duration = Transfer Size / Configured Bandwidth

This calculation assumes that each transfer fully utilizes the available bandwidth, irrespective of other concurrent transfers on the same link.

Special Case: Ring Collectives

For ring-based collective algorithms, the duration is adjusted based on the number of concurrent rings:

Ring Transfer Duration = Transfer Size / (Configured Bandwidth / Number of Rings)

A simple heuristic is applied to approximate link contention in this case.

Other Collective Operations

For all other types of collective operations, link contention is not modeled, and the duration remains:

Transfer Duration = Transfer Size / Configured Bandwidth

Known limitations

Synchronization Flows

To preserve the ordering and dependency of traffic flows, a synchronization mechanism is required. For each xPU Interconnect transfer, a synchronization flow with a 1 KB payload is generated and observable on the wire. However, the latency introduced by this synchronization flow is not included in the simulation

Accuracy Constraints

The simulation assumes that network flows are not faster than xPU Interconnect transfers. If this assumption does not hold, simulation fidelity may be impacted.

Examples: - In broadcast and other parallel collectives, once xPU Interconnect is fast enough to complete its transfers ahead of network communication, collective completion time becomes dominated by network flow latency. - In ring algorithms, once the xPU Interconnect allows full NIC utilization across all hosts, increasing its bandwidth further yields no performance gains — the network becomes the bottleneck.
